Configure Kafka clusters

Managing clusters in Console overview​

note

Use our interactive guide to learn how to connect your Kafka cluster, Schema Registry and Kafka Connect

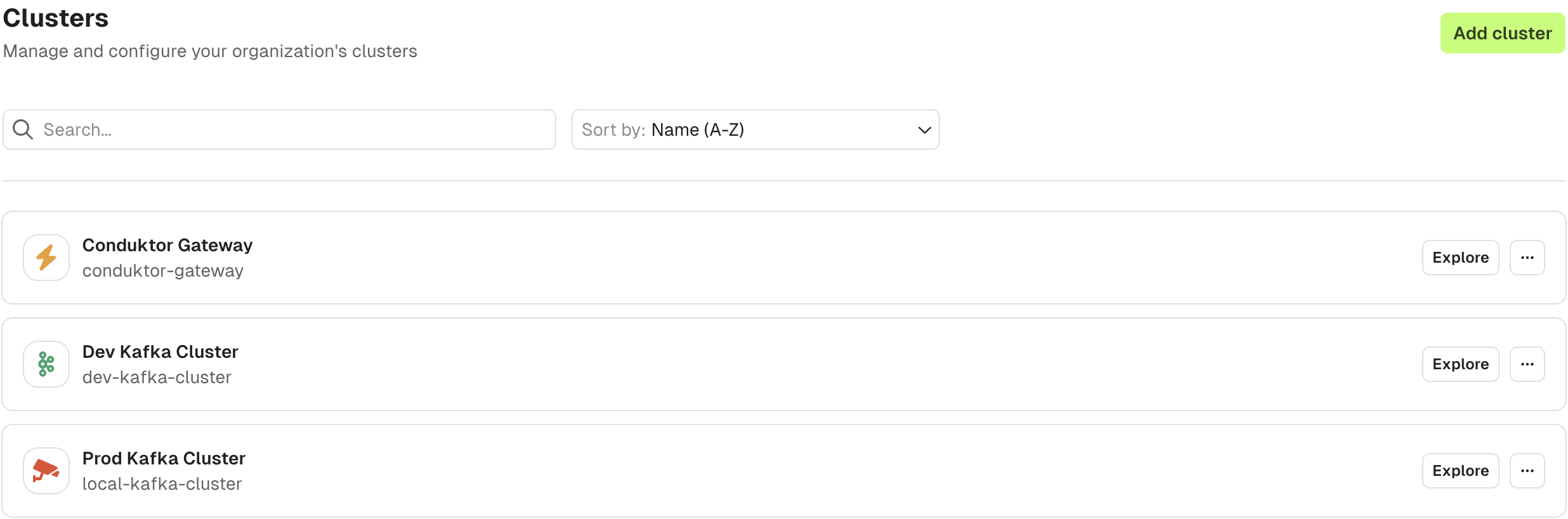

In the Clusters sections of the Settings, you can add, update, and delete Kafka cluster configurations. By default, only users belonging to the Admin group, or having the Can manage Cluster configurations permission, will be able to view and manage the clusters.

Cluster admin

To create a new cluster configuration, click on the "Create cluster" button in the top right-hand corner.

To edit an existing cluster configuration, select it from the list. You will then be able to adjust the name and color, technical ID, bootstrap servers, and additional properties. You can also enable Schema Registry and Kafka Connect for the cluster.

Connect to a secure Kafka cluster​

Conduktor leverages the default Apache Kafka Java Clients, and therefore we use the same configuration properties.

When the Conduktor Console needs to connect to a secure Kafka cluster, you must specify the values from your config.properties file.

For example:

security.protocol=SASL_SSL
sasl.mechanism=SCRAM-SHA-512
sasl.jaas.config=org.apache.kafka.common.security.scram.ScramLoginModule required username='<username>' password='<password>';
info

If your configuration references keystore or truststore path, check the Client Certificate Authentication documentation.

Connect to a Confluent cluster​

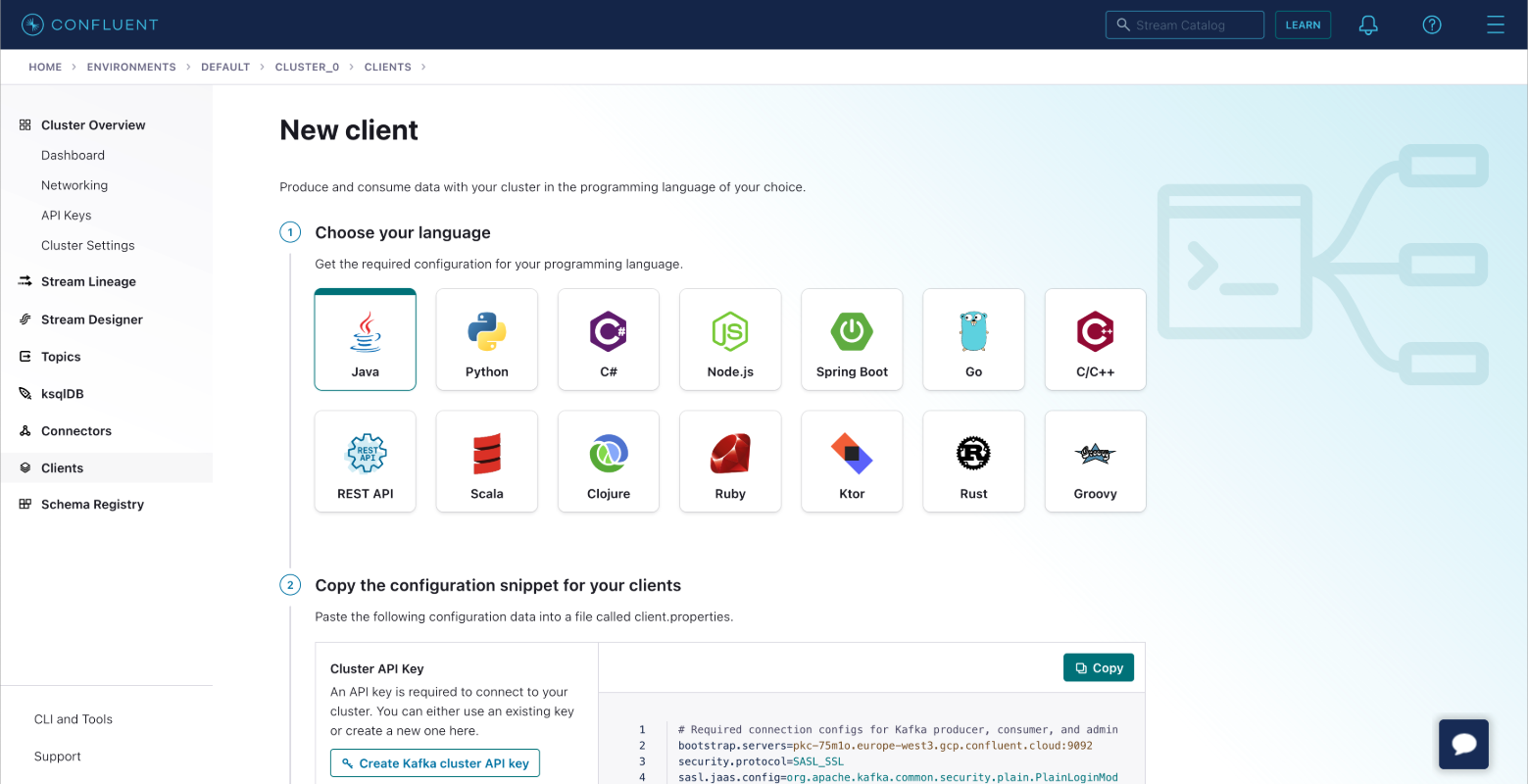

Via your Confluent cluster dashboard, select the Clients tab within Data integration.

Select Java as the language.

Confluent client

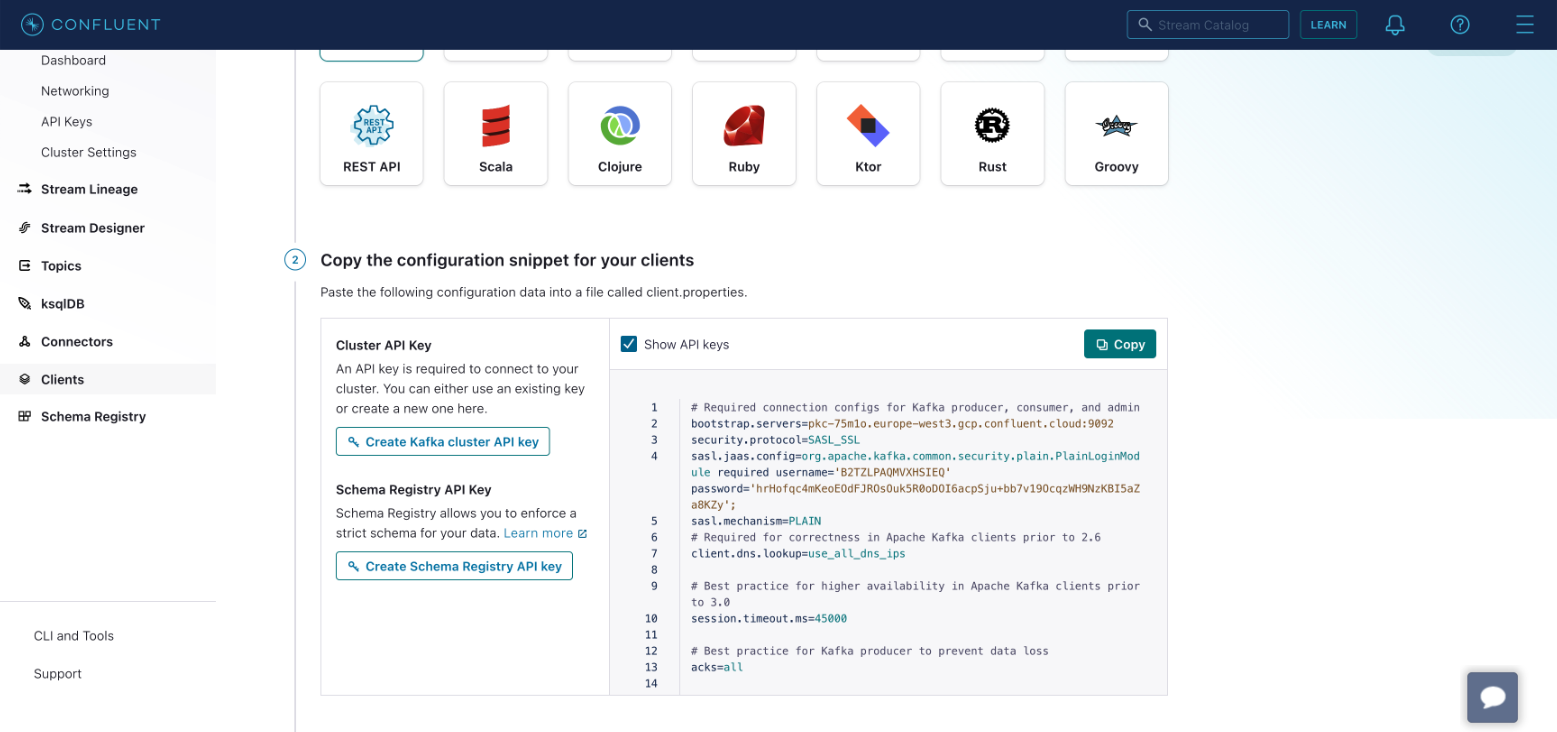

Create the Kafka cluster API key. You also have the option to create the Schema Registry API Key if you are using Schema Registry.

Confluent snippet

Copy the configuration to your clipboard.

You can now go back to Conduktor Console to configure your Kafka cluster. You can fill the bootstrap servers, and paste your configuration as Advanced properties.

You can test the connection and if successful, you will see a green Connected label.

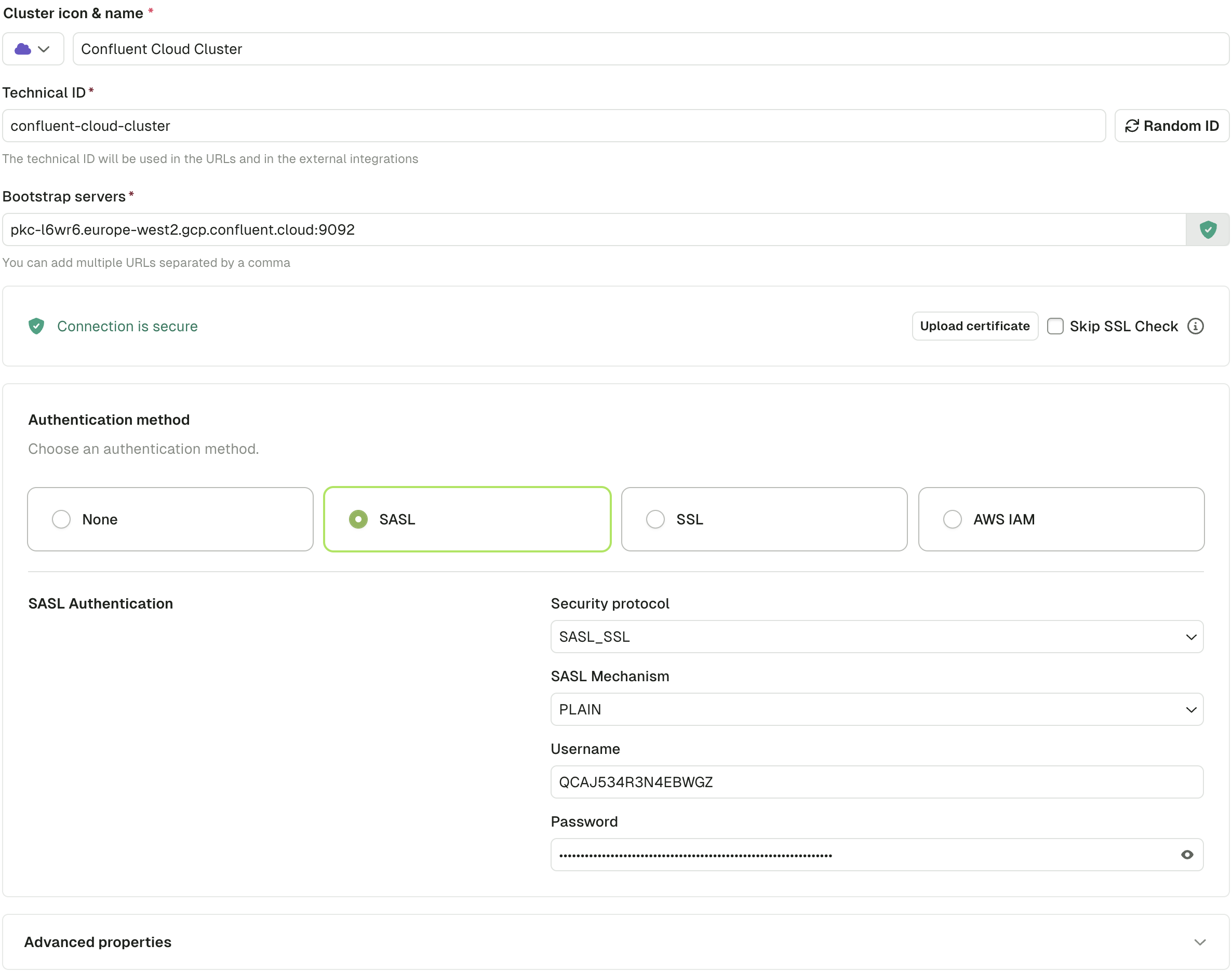

Confluent configuration in Console

Click Create Configuration to save your cluster.

Connect to an Aiven cluster​

When connecting to an Aiven cluster, you have two options.

Option 1: With SSL​

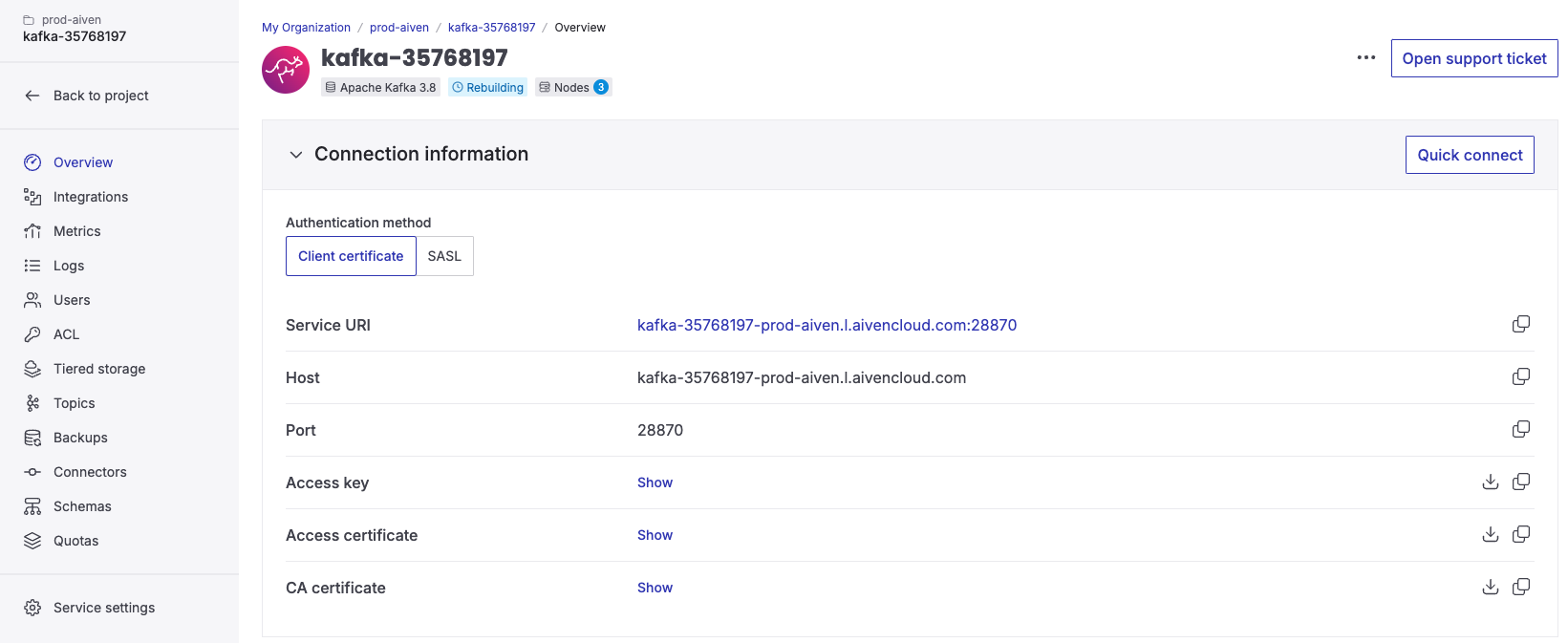

To connect to your Aiven cluster using SSL, you need to provide the Access Key, Access Certificate, and CA Certificate. You also need the cluster Bootstrap server, labelled as Service URI within the Aiven console.

Aiven certificates

In the Console, after having filled the bootstrap server, you'll have to upload the CA certificate in order to connect to your Aiven cluster.

Then, simply select SSL as authentication method, and paste the Access Key and Access Certificate in the corresponding fields.

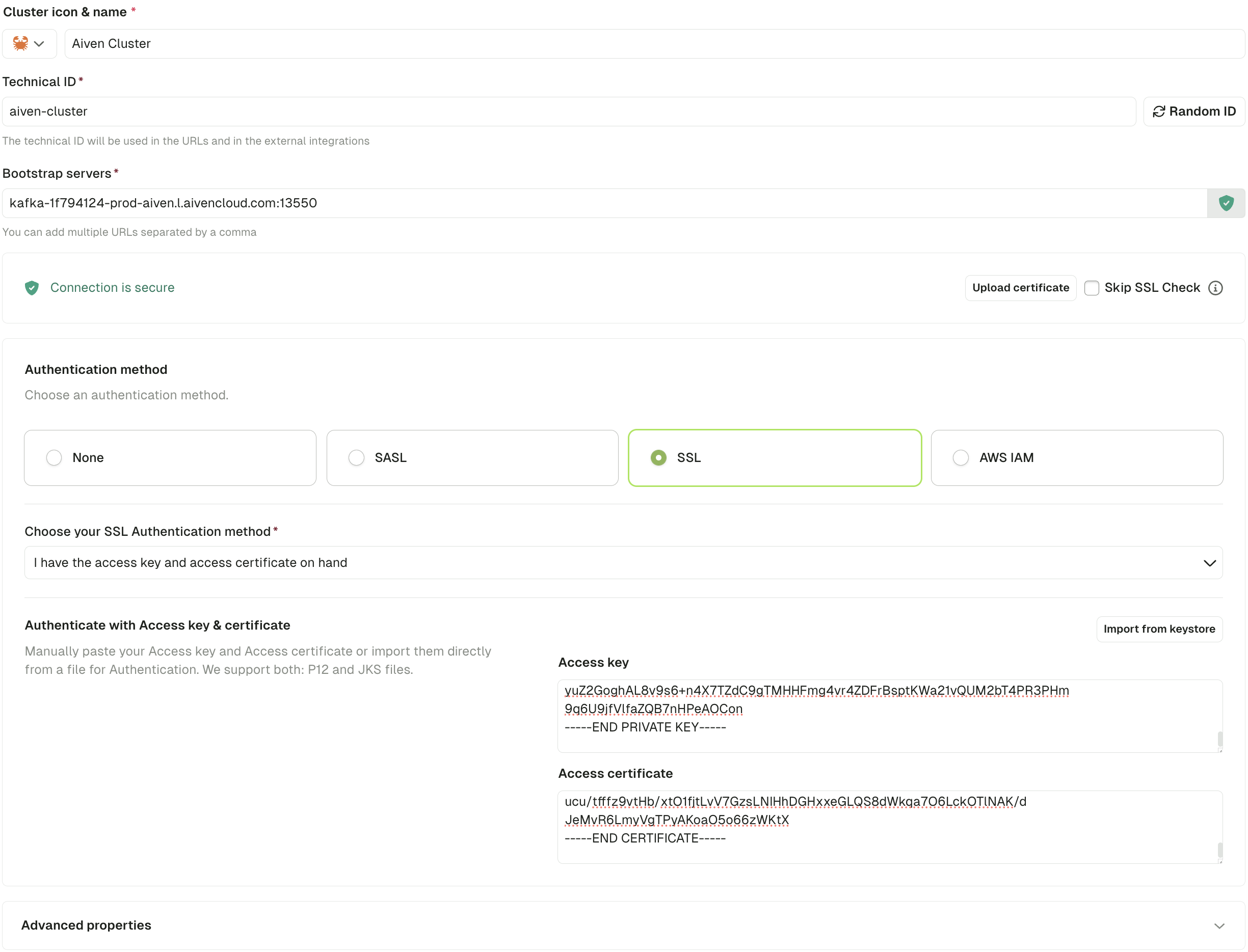

The configuration should look like this:

Console config with SSL

Option 2: With SASL_SSL​

To connect to your Aiven cluster using SASL_SSL, you need to provide the Bootstrap server labelled as Service URI, User, and Password. You can find these in the Aiven console.

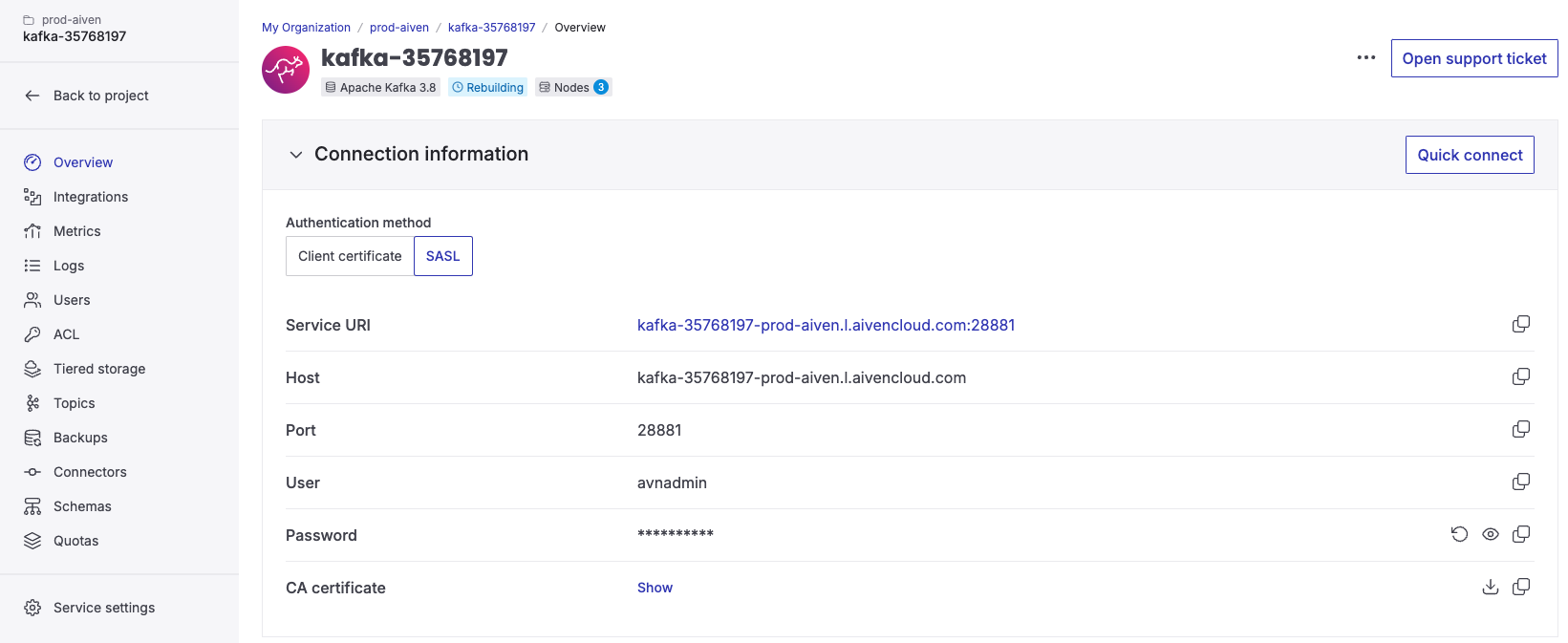

Aiven SASL

The configuration in the Console should look like this:

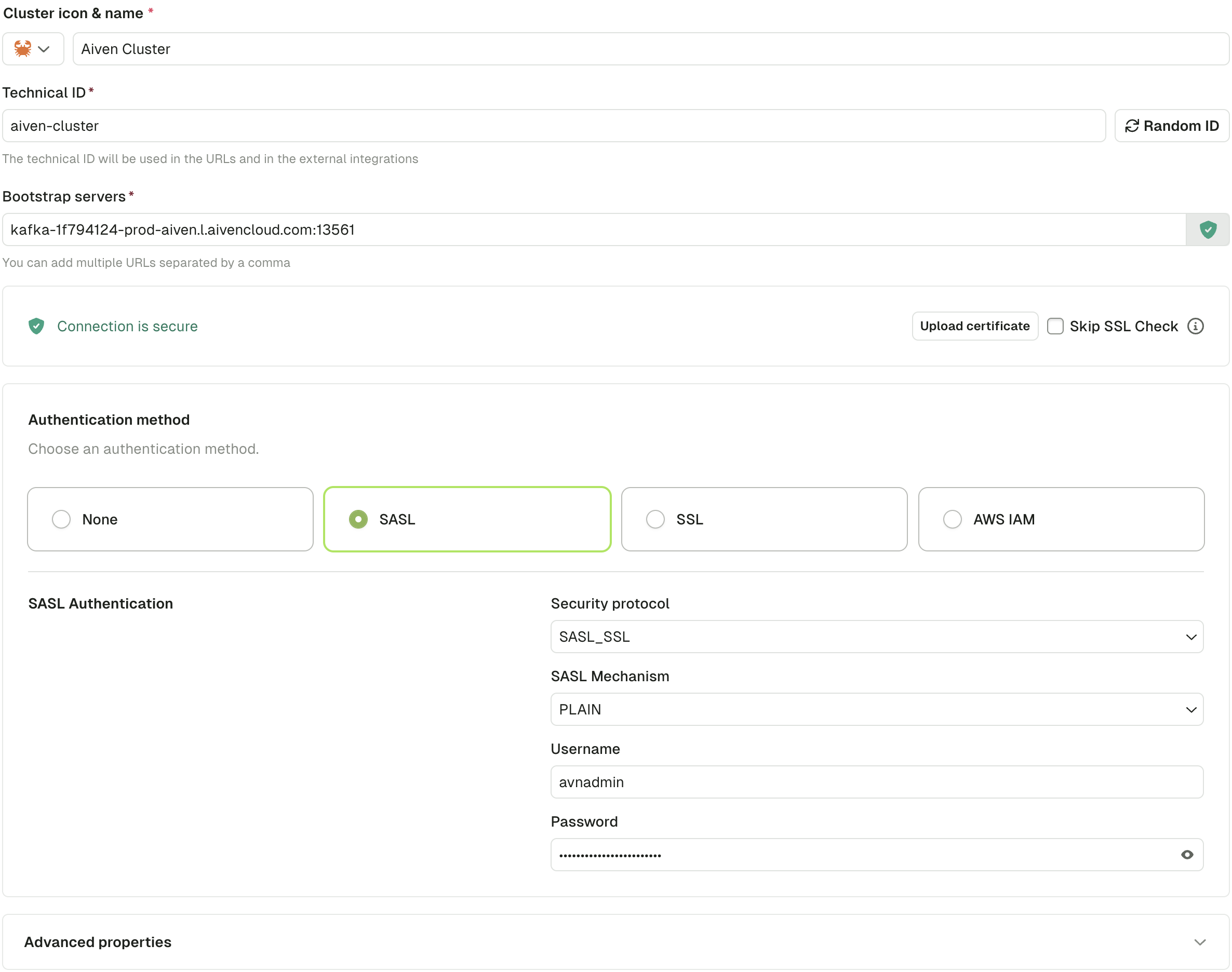

Console config with SASL_SSL

Connect to a MSK cluster​

For connecting to MSK, you first need to create an IAM user.

MSK IAM user

After that, you have to give it permissions to connect to your MSK cluster.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["kafka:*", "kafka-cluster:*"],
      "Resource": "*"
    }
  ]
}

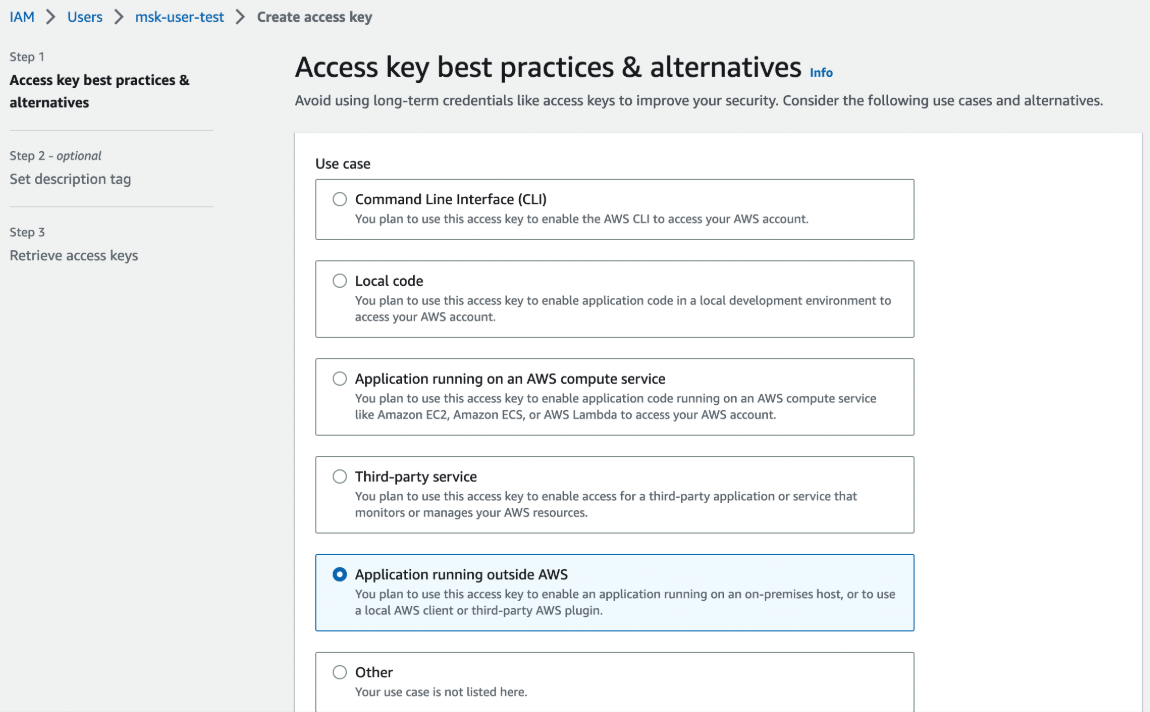

Finally, generate an access key.

MSK Access key

In the Console, fill the Bootstrap server and select AWS IAM as an authentication method. You now have two options: Either you inherit the credentials from your environment (with environment variables) or you can fill the Access Key and Secret Key.

The configuration should look like this in the Console:

Consol config with IAM

Connect to a Cloudera cluster​

info

These instructions are for a setup with SASL_SSL and PLAIN mechanisms.

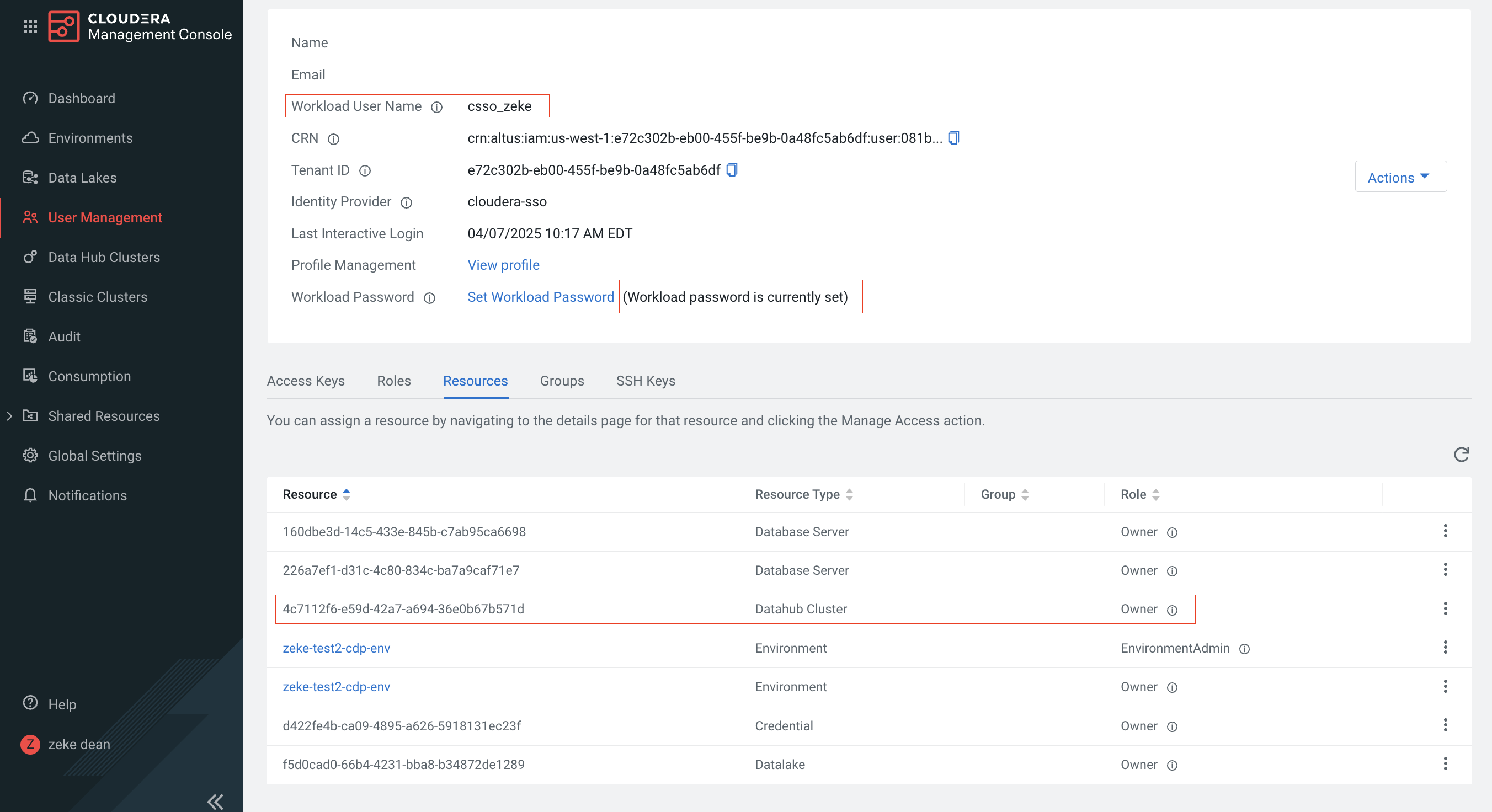

  1. To administer the Cloudera Kafka Cluster, you have to have a workload user with ownership of the Data Hub cluster configured. Make sure to note the username and password information of this user:

cloudera-user-management

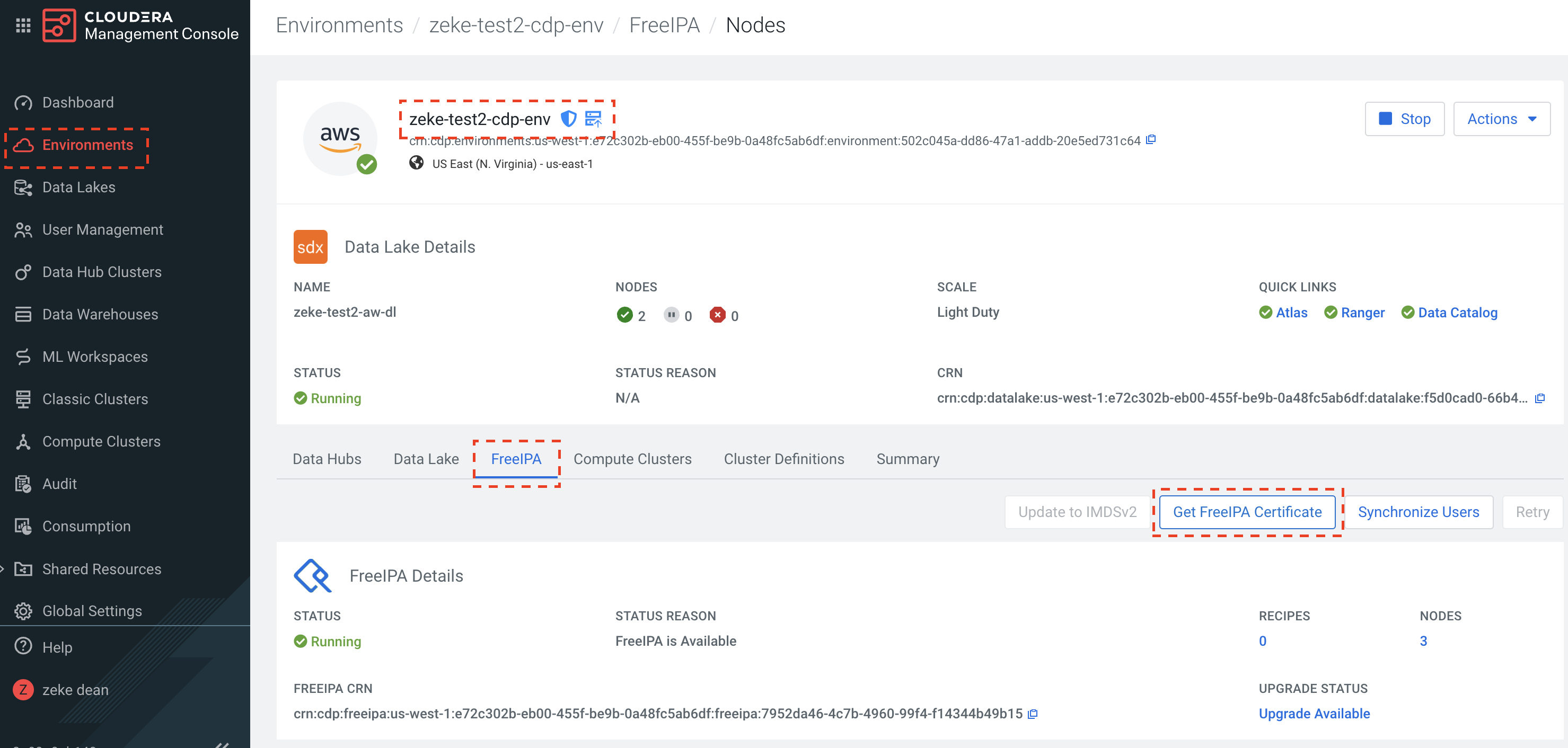

  1. Download the certificates from Cloudera: getting_certs_from_cloudera

  2. Cloudera Certificates are CRT formatted files and need to be converted to a JKS file for console to connect. To convert the file please use the java keytool, command below is an example based on the screenshots above.

keytool -import -keystore zeke-test2-cdp-env.jks -alias zeke-test2-cdp-env -file zeke-test2-cdp-env.crt

  1. In the Cloudera platform, open the firewalls for the Kafka brokers and schema registry.

  2. In Conduktor Console, go to Clusters, select the newly created Cloudera one and add the certs to your environment or click Upload certificate to manually upload them.

  3. Once you've added your certs to Console, configure the cluster in the below screenshot. Use the workload user and password from the first step.

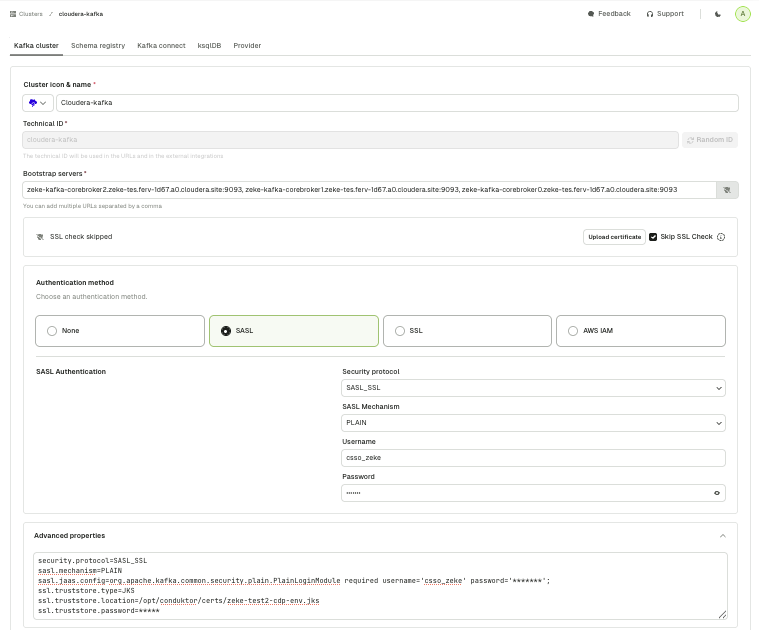

adding cloudera to console

Here's a fully automated turnkey example.

Connect to a Google Cloud cluster​

You can connect to Google Cloud Managed Service for Apache Kafka using the SASL_SSL protocol or the PLAIN mechanism with one of the following options.

Option 1: Use a service account​

Go to Google Cloud docs for instructions.

Option 2: Use an access token​

First, get an access token:

gcloud auth login --no-launch-browser
gcloud auth print-access-token

Then, use that token with the following parameters:

security.protocol=SASL_SSL
sasl.mechanism=PLAIN
sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required \
username="PRINCIPAL_EMAIL_ADDRESS" \
password="ACCESS_TOKEN_VALUE";

When authenticating incoming connections to the cluster, managed service for Apache Kafka checks that:

  • the access token is valid and has not expired
  • the provided username matches the principal email that the access token is associated with
  • the access token's principal has the managedkafka.clusters.connect permission (included in roles/managedkafka.client) on the cluster

Configure Gateway for multi-clusters​

Gateway can be configured to communicate with multiple Kafka clusters and expose their topics to your partners.

  • direct partners to a single endpoint
  • provide them with access to topics in multiple Kafka clusters
  • expose topics using aliases that can be different from topic names

1. Configure Gateway​

To set up Gateway to support multi-clusters, you should:

  • configure one main cluster which will be used by Gateway to store its internal state
  • set up any number of upstream physical Kafka clusters that you want to expose through Gateway

This can be achieved through a configuration file, or environment variables.

warning

If you're using Partner virtual clusters to share data with external third parties, be aware that cluster IDs (e.g., clusterA, clusterB) may appear in the bootstrap server address or client logs. To prevent unintended exposure, avoid using sensitive names or information in cluster IDs.

Specify your main and upstream cluster configurations, along with a gateway.roles entry to mark the upstream clusters.

cluster-config.yaml
config:
  main:
    bootstrap.servers: '<main_bootstrap_servers>:9092'
    security.protocol: 'SASL_SSL'
    sasl.mechanism: 'PLAIN'
    sasl.jaas.config: 'org.apache.kafka.common.security.plain.PlainLoginModule required username="<main_api_key>" password="<main_api_secret>";'
  clusterA:
    bootstrap.servers: '<clusterA_bootstrap_servers>:9092'
    security.protocol: 'SASL_SSL'
    sasl.mechanism: 'PLAIN'
    sasl.jaas.config: 'org.apache.kafka.common.security.plain.PlainLoginModule required username="<clusterA_api_key>" password="<clusterA_api_secret>";'
    gateway.roles: 'upstream' # Note: may be omitted as upstream is the default (used to differentiate from failover clusters)
  clusterB:
    bootstrap.servers: '<clusterB_bootstrap_servers>:9092'
    security.protocol: 'SASL_SSL'
    sasl.mechanism: 'PLAIN'
    sasl.jaas.config: 'org.apache.kafka.common.security.plain.PlainLoginModule required username="<clusterB_api_key>" password="<clusterB_api_secret>";'
    gateway.roles: 'upstream' # Note: may be omitted as upstream is the default (used to differentiate from failover clusters)

Then, mount the cluster config file in the Gateway container using the configuration GATEWAY_BACKEND_KAFKA_SELECTOR:

GATEWAY_BACKEND_KAFKA_SELECTOR: 'file : { path: /cluster-config.yaml}'

2. Create a partner virtual cluster​

First, create a new partner virtual cluster.

info

For partner virtual clusters, aclEnabled must be true and superUsers must not be empty.

Create this YAML file:

mypartner.yaml
---
kind: VirtualCluster
apiVersion: gateway/v2
metadata:
  name: mypartner
spec:
  aclEnabled: true
  superUsers:
    - super-user
  type: Partner

Then, apply it:

conduktor apply -f mypartner.yaml

3. Alias your topics​

Finally, create aliases for existing topics in the partner virtual cluster.

warning

Alias topics within a partner virtual cluster can only point to topics from the same physical cluster.

Create this YAML file:

alias-topics.yaml
---
kind: AliasTopic
apiVersion: gateway/v2
metadata:
  name: topic1
  vCluster: mypartner
spec:
  physicalName: internal-topic-name1
  physicalCluster: clusterA
---
kind: AliasTopic
apiVersion: gateway/v2
metadata:
  name: topic2
  vCluster: mypartner
spec:
  physicalName: internal-topic-name2
  physicalCluster: clusterA

Then, apply it:

conduktor apply -f alias-topics.yaml

4. Create service accounts​

Once the virtual cluster is created and contains the topics to expose to your partners, you'll need to create service accounts and configure ACLs (Access Control Lists).

Create two service accounts for the partner virtual cluster: one super user and one partner user.

The super user will manage ACLs and grant permissions to the partner user, who will use their account to access the exposed topics.

service-accounts.yaml
---
kind: GatewayServiceAccount
apiVersion: gateway/v2
metadata:
  name: super-user
  vCluster: mypartner
spec:
  type: LOCAL
---
kind: GatewayServiceAccount
apiVersion: gateway/v2
metadata:
  name: partner-user
  vCluster: mypartner
spec:
  type: LOCAL

Then, apply it:

conduktor apply -f service-accounts.yaml

In order to connect to Gateway using these service accounts, you need to get their associated password.

conduktor run generateServiceAccountToken \
  --username super-user \
  --v-cluster mypartner \
  --life-time-seconds 100000000

conduktor run generateServiceAccountToken \
  --username partner-user \
  --v-cluster mypartner \
  --life-time-seconds 100000000

Put the admin credentials in a file called mypartner-super-user.properties:

mypartner-super-user.properties
security.protocol=SASL_PLAINTEXT
sasl.mechanism=PLAIN
sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required username="super-user" password="$SUPER-USER-PASSWORD";

And the partner credentials in a file called mypartner-partner-user.properties:

mypartner-partner-user.properties
security.protocol=SASL_PLAINTEXT
sasl.mechanism=PLAIN
sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required username="partner-user" password="$PARTNER-USER-PASSWORD";

5. Create ACLs for the service accounts​

Before creating ACLs, you need to know how to reach this partner virtual cluster.

For that, make the following request:

curl \
  --silent \
  --user "admin:conduktor" \
  "http://localhost:8888/gateway/v2/virtual-cluster/mypartner"

This will return something like this, with the bootstrap address and client properties:

{
  "kind": "VirtualCluster",
  "apiVersion": "gateway/v2",
  "metadata": {
    "name": "mypartner"
  },
  "spec": {
    "aclEnabled": true,
    "superUsers": [ "super-user" ],
    "type": "Partner",
    "bootstrapServers": "<partner_virtual_cluster_bootstrap_address>",
    "clientProperties": {
      "security.protocol": "SASL_PLAINTEXT",
      "sasl.mechanism": "PLAIN",
      "sasl.jaas.config": "org.apache.kafka.common.security.plain.PlainLoginModule required username={{username}} password={{password}};"
    }
  }
}

From there, you have everything you need to create ACLs for the partner service accounts:

# The partner can consume all the topics of this partner virtual cluster
kafka-acls --bootstrap-server <partner_virtual_cluster_bootstrap_address> \
  --command-config mypartner-super-user.properties \
  --add \
  --allow-principal User:partner-user \
  --consumer \
  --topic "*" \
  --group partner-app

# The partner can produce and consume from the topic1 alias topic
kafka-acls --bootstrap-server <partner_virtual_cluster_bootstrap_address> \
  --command-config mypartner-super-user.properties \
  --add \
  --allow-principal User:partner-user \
  --producer \
  --topic topic1

Find out more about service accounts and ACLs.

6. Test partner virtual cluster access​

Now that the partner user has the correct ACLs, you can use their credentials to interact with the alias topics and verify that the permissions are correctly set.

kafka-console-producer --bootstrap-server localhost:6974 \
  --topic topic1 \
  --producer.config mypartner-partner-user.properties

kafka-console-consumer --bootstrap-server localhost:6974 \
  --topic topic2 \
  --consumer.config mypartner-partner-user.properties \
  --group partner-app \
  --from-beginning

Once confirmed, simply share the mypartner-partner-user.properties file and the correct bootstrap server details with your partner.
